Introduction: Why Everyone Asks About Print Bed Capacity
When people evaluate a UV flatbed printer, the conversation almost always circles back to one thing. What can it actually produce in a real working day?
That’s exactly what this breakdown of the Epson SureColor V4000 print bed capacity is about. Not theoretical specs. Not marketing numbers. Real output based on practical layouts, real spacing, and production-ready workflows.
With its A1+ flatbed design and versatile height clearance, the V4000 is built to bridge the gap between small-format UV printers and full production systems. But the real question is how far that bridge actually goes.
The Epson SureColor V4000 Print Bed: The Foundation

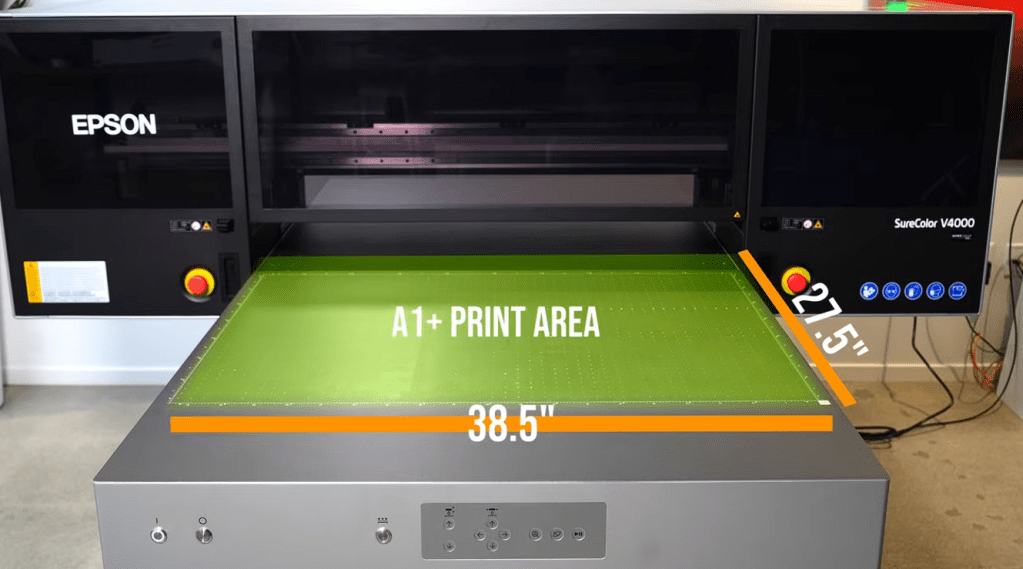

At the core of the V4000 is a 38.5″ x 27.5″ print bed with up to 7.8 inches of media clearance. That combination matters more than it first appears.
The footprint is compact enough for a small shop floor, but the usable space is large enough to run meaningful production batches. And because the machine is front-loading, operators aren’t constantly walking around the unit or breaking workflow between jobs.
Epson also positions the machine at around six beds per hour in standard production mode. That number becomes the baseline for everything that follows, because throughput is really where print bed capacity turns into business value.
Signage: Reliable, Repeatable Production
Let’s start with one of the most familiar categories, rigid signage.

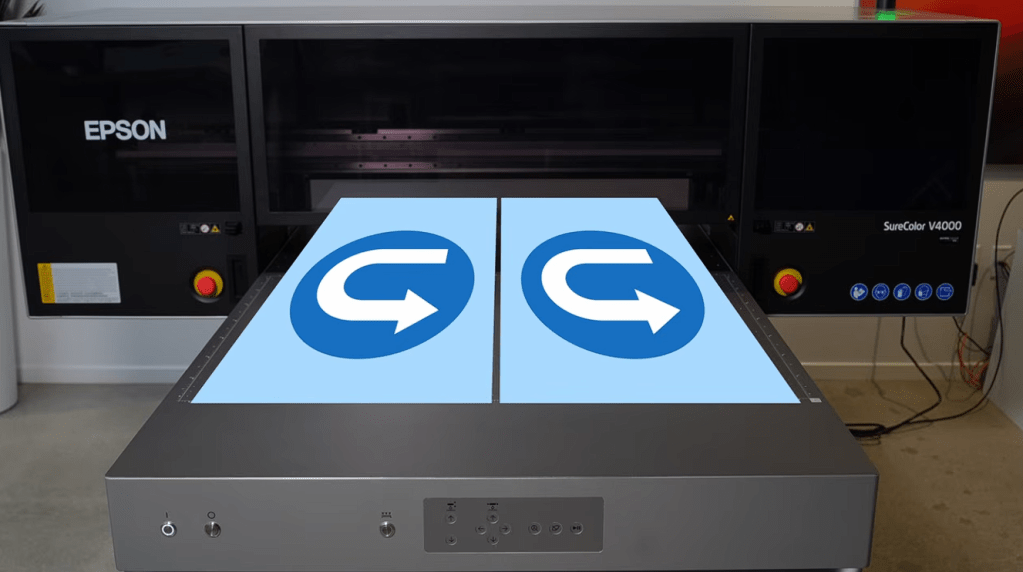

An 18″ x 24″ yard sign fits twice on the V4000 bed with proper spacing. That means a full pass produces two signs, and over the course of an hour, you’re looking at roughly a dozen completed signs.
What makes this important isn’t just the quantity, it’s the consistency. These are the kinds of jobs that shops run daily: real estate signage, political campaigns, local events, and retail promotions.

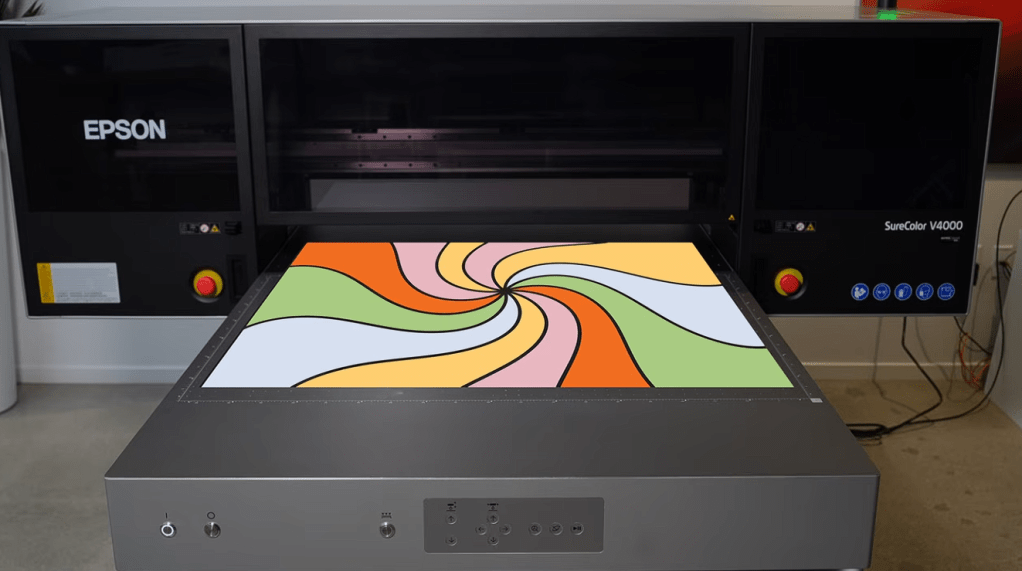

Step up in size to a 24″ x 36″ rigid print, and the workflow shifts slightly. You’re now producing one high-quality print per bed. At scale, that still delivers steady output for acrylic, metal, or wood substrates without needing mounting or secondary processing.
This is where the Epson SureColor V4000 print bed capacity starts to show its practical advantage: fewer steps between print and finished product.
Promotional Products: Where Efficiency Starts Compounding
The real shift happens when you move into promotional goods. These are smaller items, but they multiply output quickly when the bed is fully optimized.

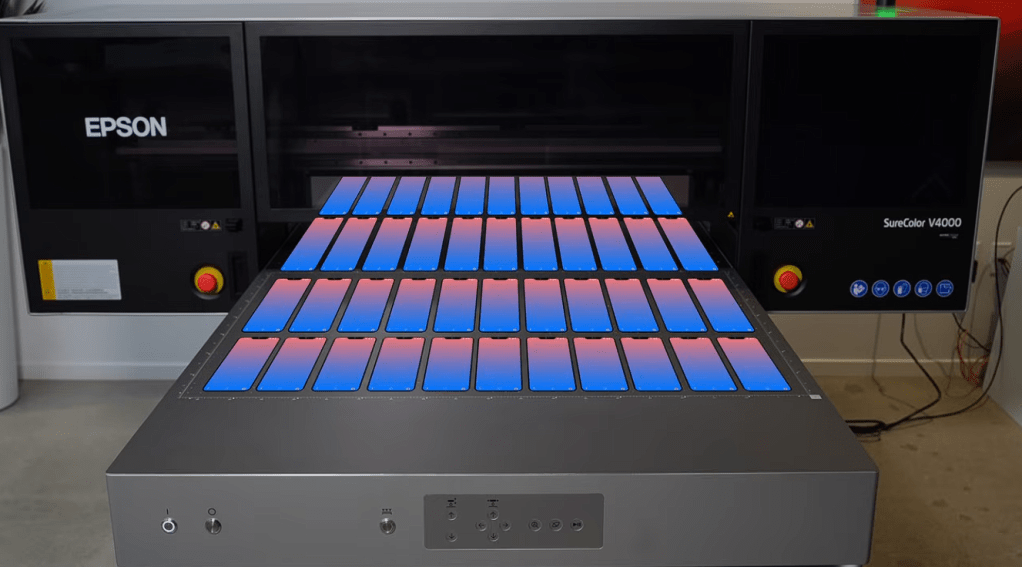

Phone cases are a good example. A properly built jig allows 44 cases per pass. That turns into hundreds per hour without changing the workflow.

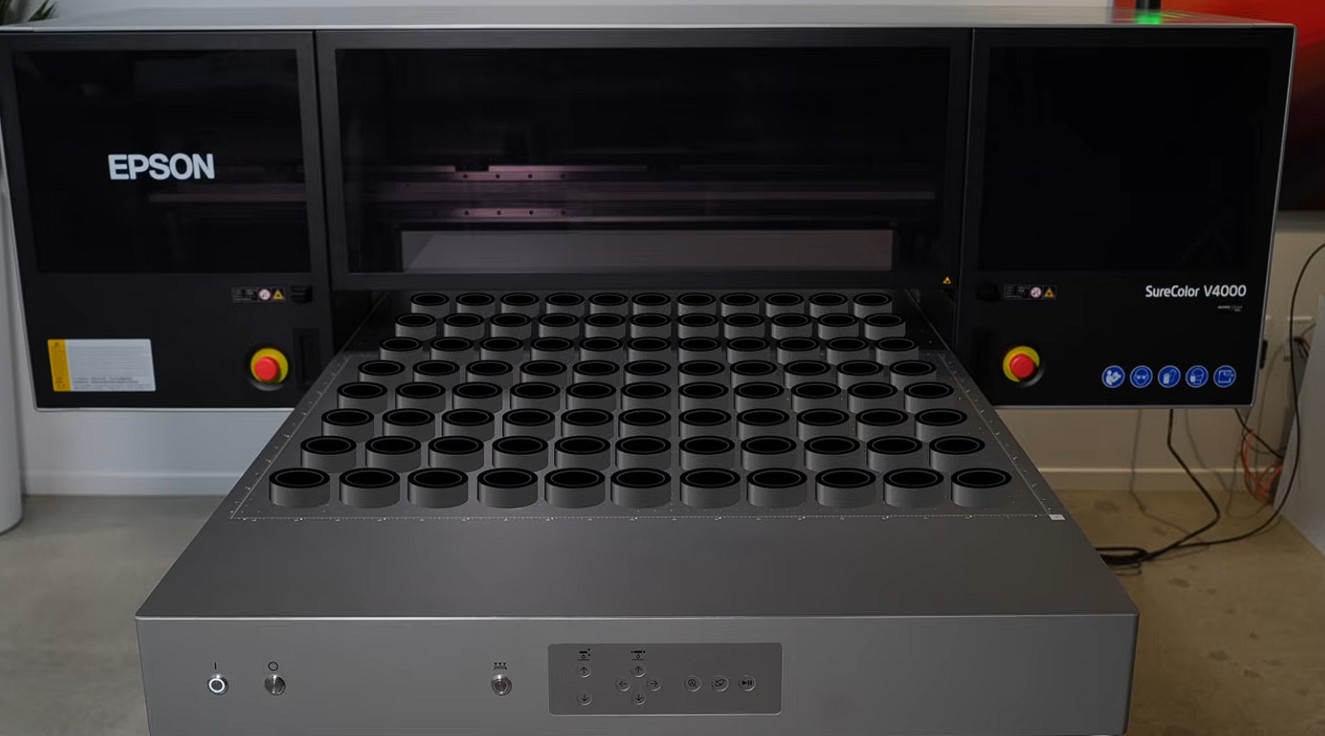

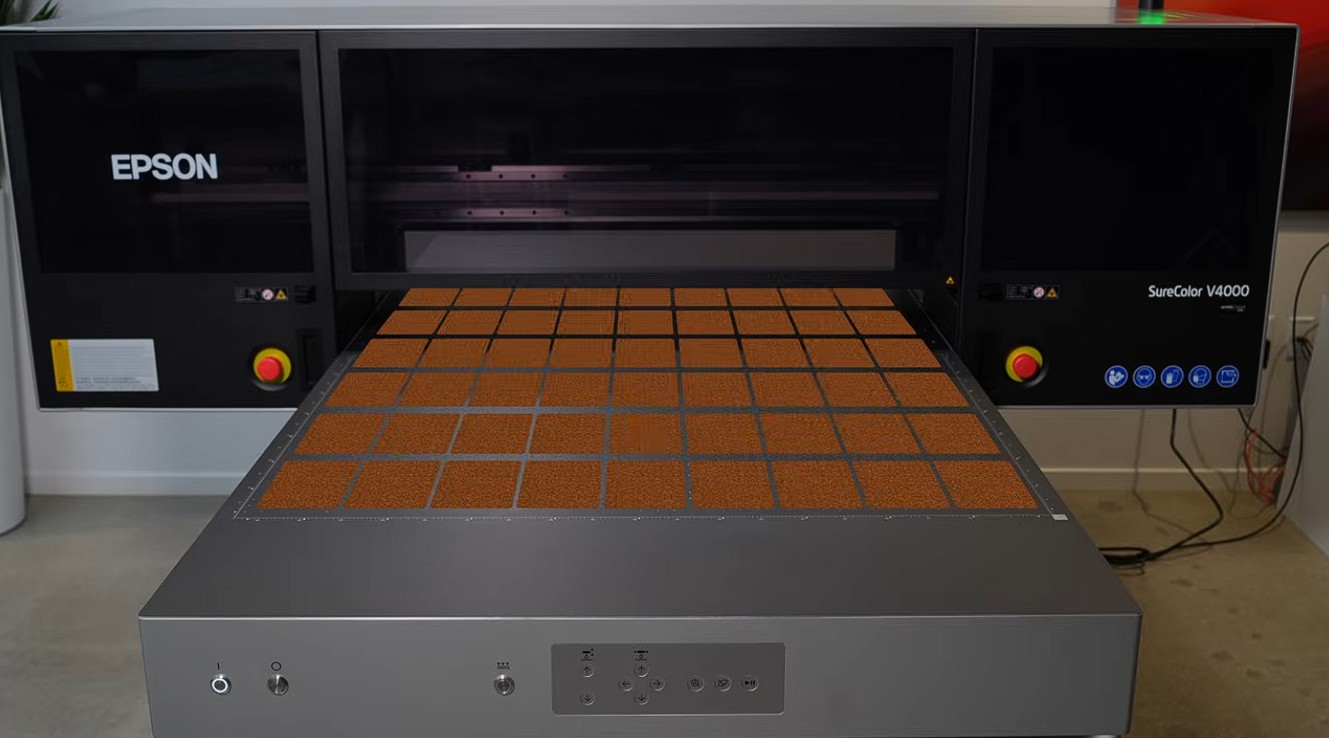

Hockey pucks and coasters follow a similar pattern. You’re no longer thinking in single-item production. You’re thinking in batches, cycles, and repeatable layouts. Each pass of the bed becomes a mini production run.
At this stage, the Epson SureColor V4000 print bed capacity stops being a spec and starts behaving like a manufacturing system.
Sports Products: The Advantage of Height Clearance

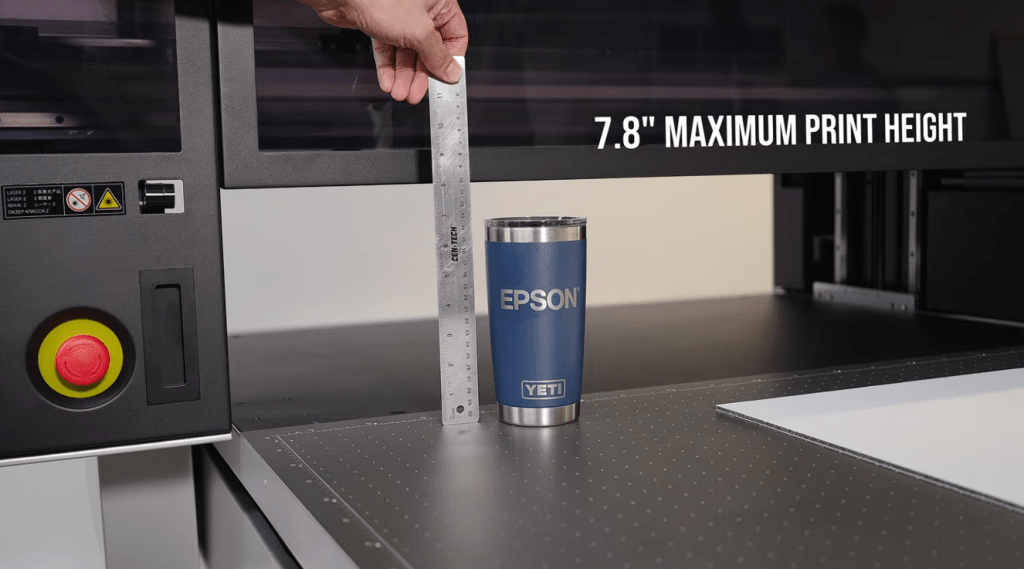

One of the most underrated features of the V4000 is the 7.8-inch clearance. That’s what makes sports products viable at scale.
Golf balls and baseballs are the clearest examples. These aren’t flat items, and many UV systems struggle with either alignment or volume limitations.
On the V4000, golf balls can be densely packed into a jig, producing well over a thousand units per hour in steady production. Baseballs also run efficiently, giving shops access to a category that blends retail, team branding, and event merchandising.
This is where the machine starts to expand beyond traditional flatbed use cases. It’s not just printing flat objects anymore; it’s handling dimensional merchandise in volume.
High-Density Production: Where Numbers Get Serious
Smaller items are where the V4000 really pushes efficiency.
Dog tags and poker chips are perfect examples because they maximize surface area usage. When the bed is fully optimized, you’re no longer thinking about individual pieces; you’re running full production sheets of hundreds of items per pass.
At this level, output reaches thousands of units per hour depending on job type. That kind of throughput changes how businesses approach fulfillment, especially in e-commerce or promotional manufacturing.
But more importantly, it shows how much of the Epson SureColor V4000 print bed capacity is actually determined by workflow design rather than just hardware.
What This Means in a Real Production Environment
It’s easy to look at these numbers individually, but the bigger picture is what matters.
The V4000 isn’t just a printer that handles different substrates, it’s a system that allows a shop to move from isolated jobs into continuous production cycles.
Instead of printing one phone case, then resetting, then printing another, operators are filling full beds and running repeatable output cycles throughout the day.
That’s where efficiency compounds. Setup time drops as a percentage of output. Labor becomes more predictable. And production capacity becomes scalable without expanding floor space.
Final Thoughts: Print Bed Capacity Is Really About Workflow
When you strip everything back, the Epson SureColor V4000 print bed capacity isn’t just about what physically fits on the bed; it’s about how efficiently that space can be turned into revenue.
From signage and promotional goods to sports merchandise and high-density small items, the machine is designed to maximize usable production space while keeping the workflow simple enough for a single operator.
For shops moving beyond entry-level UV printing, that combination is what makes the V4000 less of an upgrade and more of a shift in how production is approached altogether.
Watch our video for a complete walkthrough of the information covered in this blog. Click Here to watch.
